Cooler of sinter returns
Cooler of sinter returns is designed for water cooling of hot sinter returns, i.e. sinter fines and undersized pellets screen-separated after the sintering and roasting machines discharge.
Two following types of coolers of sinter returns are manufactured:
- self-discharge barrel (ОВ 1,8x4,9), with internal bilifar helix, completed with feed and discharge end subassemblies with access platform (horizontally mounted barrel);
- barrel with longitudinal round ribs for better stirring of sinter returns (ОВ 1,8x5,9) mounted at the angle of 4° to the horizontal towards the discharge end subassembly.

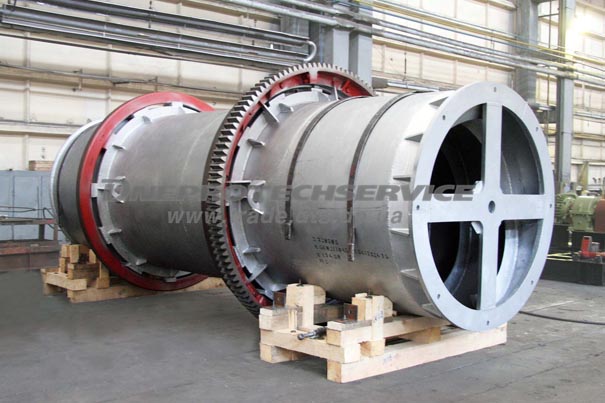

Cooler of sinter returns is a steel welded barrel with internal steel plate lining bearing on four supporting rollers through supporting rings. Two thrust rollers prevents barrel from longitudinal displacement. Barrel rotation is driven by the electric motor through the reduction gear and open gear mechanism, geared rim fastened on one of supporting rings.
Manufacturing period: 90 days.
