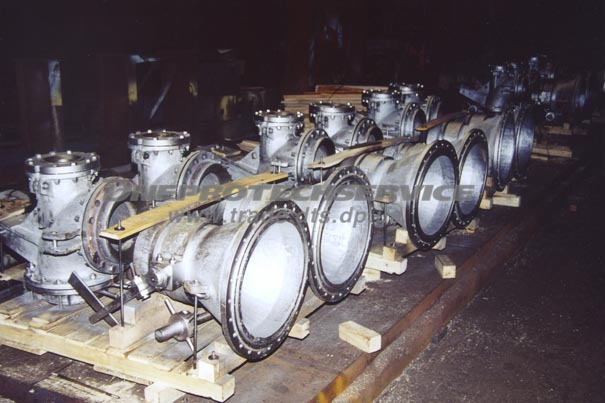

Tuyere device
Tuyere devices are designed to supply hot air blast and natural gas through the air tuyere to the furnace well.
The tuyere devices consist of the three main units:
- stationary part fixed on the housing of the furnace well;
- blast connection (tuyere) stock connecting the stationary part to the hot-blast circulating duct;
- springing attachment (buckle).
The tuyere devices are installed directly near the furnace connecting it to the hot-blast circulating duct. The connections are supplied without the refractory lining.
Manufacturing period: 120 days.
