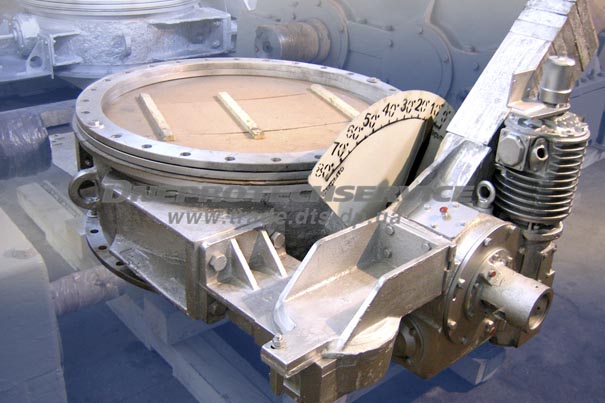

Throttle gas valve
Throttle gas valve is designed to regulate the amount of gas supplied to the gas burner of the furnace stove and complete shutoff of the burner from the gas main during normal operation or when the current fails. The valve is installed on vertical section of the gas main.
The throttle gas valve consists of the following main units:
- housing;
- two-stage worm reducer;
- flange electric drive;
- magnet support with electric magnetic coil;
- drive;
- switch.
Manufacturing period: 90 days.
