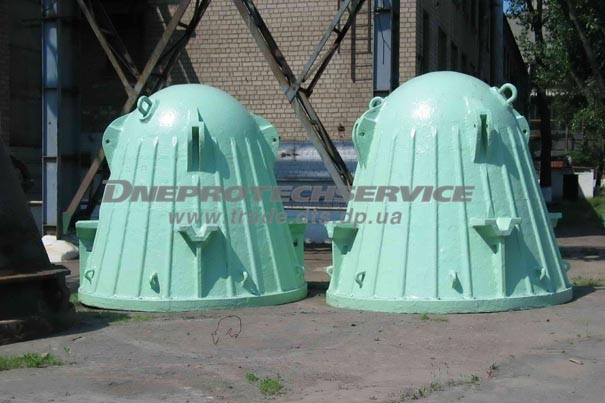

Slag ladles
Slag ladle is designed for collection of molten slag discharged from furnaces, steelmaking and ferroalloy units. The ladles are filled with the slag with temperature of up to 1600°C and density of up to 3,7 t/m3.
In the upper part of the ladle there are four castings with spaces for ring support tooth designed to install the ladle on the slag car. The Martin ladles has four more castings with space that allows to transport it with the lifting beam and a circular stiffening hooping. Four castings are made in the lower part – T-shaped gauges designed to lock the ladle in the ring support that excludes any possibility of its fallout in the process of slag car movement.
Manufacturing period: 30 days
