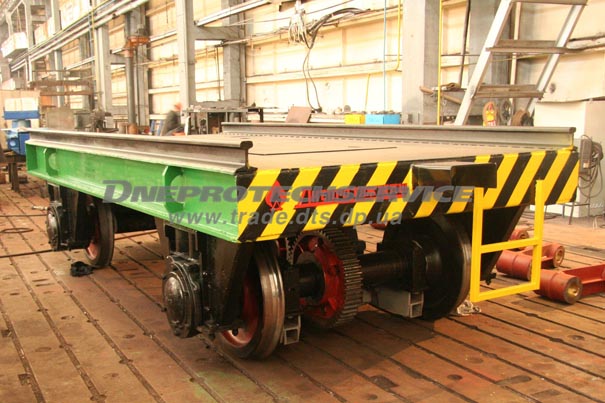

Transfer bogie
Transfer bogie with l/c of 160 t is designed to transport the slabs between the shop passages.
The bogie consists of: frame, carriage, electric drive, centralized hydraulic lubrication system, current-collecting device.
The bogie moves along the track that is up to 55 m long. The travel path is straight. Bogie operation cycle (loading and transportation of the slabs to the shop, their unloading and bogie return) makes 8-9 minutes. The bogie operation is hand-controlled. The assembled bogie with electrical equipment and control equipment installed thereto are included to the scope of supply.
Manufacturing period: 90 days.
