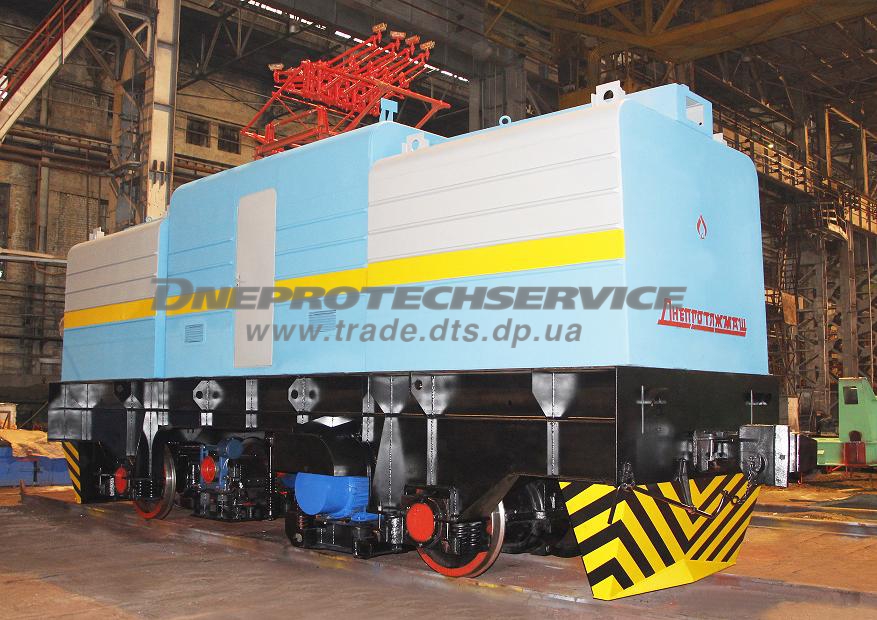

Rail car movers Т20М, Т22П2 (Wagon pushers Т20М, Т22П2)
Rail car movers are component parts of unloading complex and are intended for open cars pushing and positioning in the wagon tipplers of and type.
Rail car mover consists of:
- four-wheel driving truck consisting of frame with the drives mounted thereon;
- electric equipment cab;
- ballast box;
- current collector intended for the electric power supply from trolleys to railcar mover.
Design features:
- operation on the straight and curvilinear sections (with the curvature radius of at least 200 m); operational reliability in any weather environment;
- smooth and effective braking during the open wagon positioning into the wagon tippler; low energy consumption;
- ease of control and operation;
- mechanical brakes remote independent control without the excitation winding de-energization.
Manufacturing period: 120 days.
