Charging chutes

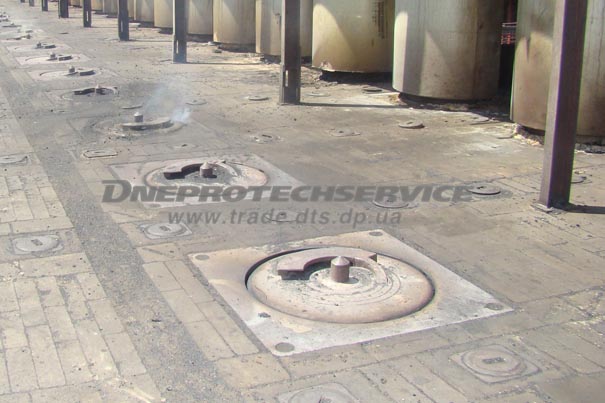

The chutes are intended for closing and sealing the charging hole of coke battery oven. The chute consists of the cover and frame. The frame is an iron casting of ring or rectangular shape. There is a taper hole and ring seat for guiding and installation of chute cover in the upper frame portion. The chute cover is a round carbon steel casting. The upper portion of the cover has a pin for guiding and centering the gripper of the chute dismantling mechanism. For separation and removal of the chute cover by the gripper of chute dismantling mechanism the sector is attached to upper part of the cover. The lower portion of the cover is made as cylindrical knife and has the ring -shaped cut-out on the side surface for sealing in the frame seat. For fastening of thermal insulation the reinforcement is welded to the lower portion of the cover. The chutes are produced for coke ovens 20...51m3, differ in dimensions and weights
Manufacturing period: 90 days.
