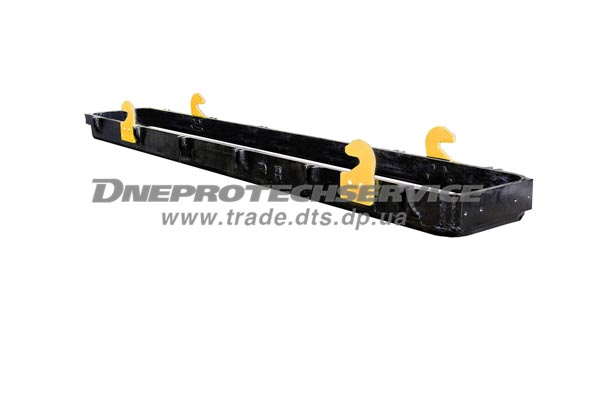

Coke oven frames

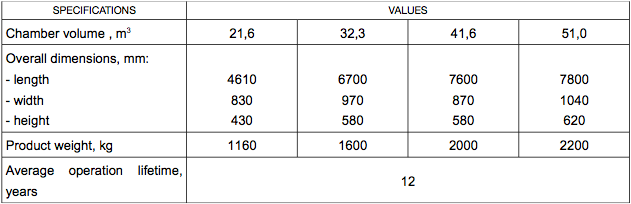

The frames are intended for installation and holding of the doors on machine and coke side of the battery. The frame is an iron casting of complex configuration. There are the special type slots and skews in the frame for laying the asbestos cords. The inner plane of the frame has the machined surface (mirror) for pressing the sealing frame blade to provide the sealing of coking chambers. The hooks with mouths are attached to the side walls of each frame side. In the middle portion of the frame body the rests (shoes) are fastened on the both sides on which the door rollers rest for holding the doors in vertical position. The frames are made for coke ovens with chamber volume 21,6...51 m3, as well as for coked pitch batteries with coking chamber volume 17,5 m3. The frames differ in dimensions and weight.
Manufacturing period: 90 days.
