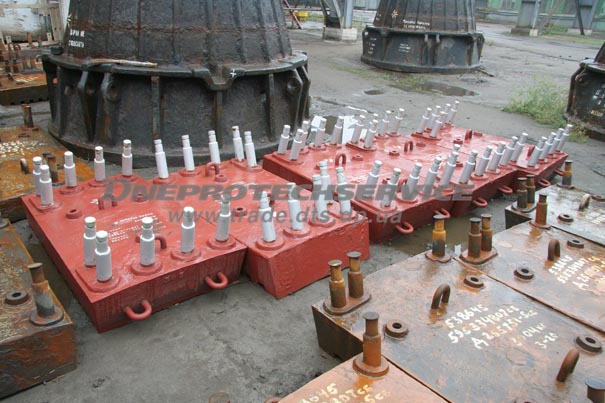

Furnace cooling plates
Furnace cooling plates are designed to protect the furnace mantle from high temperatures impact, preserve the efficient brickwork profile and increase the furnace life by 8…10 years. The cooling plates for furnaces with capacity of 1033 to 5400 m3 are produced. The design of the cooling plates allows to pressurize the furnace mantle. The cooling plates operate on evaporation, water and mixed cooling. The peculiar feature of the cooling plates is the availability of four cooled pipes with separate water supply. When one of the pipes breaks down, the cooling plate keeps operating. Nodular iron may be used for production of cooling plates. The carbon content is reduced in seamless pipes casted into the metal and they have the increased relevant extension. The pipes casted have the optimal plasticity value. The cooling plates may be designed and produced according to the customer’s requirements.
Manufacturing period: 160 days.
