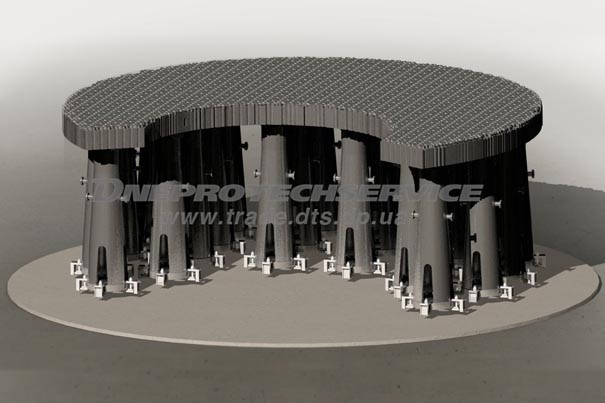

Nostril gear
Nostril gear is an integral part of the blast-furnace heater. It is designed to heat the air blast entering the blast-furnace performing the function of the heat-exchanging unit. The nostril gear operates in the final gases environment with constant temperature of up to 400°C. The nostril gear consists of grids, columns and plates. All the details of the nostril gear are casted of ЧХ1 cast-iron. When assembled, the grids of the nostril gear are fixed onto the columns and the plates are fixed to the grids with pins. Then the whole construction is lined.
Manufacturing period: 120 days.
