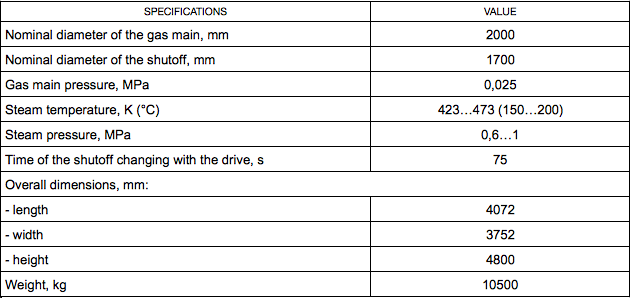

Thermal gas shutoff
Thermal gas shutoff of DN2000/1700 type is designed to shutoff separate gas cleaning units and main sections from the general gas network and is installed on horizontal section of the gas main.
The gas shutoff may be switched on manually when current or electric drive fails.
The gas shutoff is supplied with electric drive, controller, microswitch, electric contact thermometer, gate valves and return valves installed on the mains to supply steam and to supply and remove cooling water.
The controlling equipment and welded chain for sprocket of hand drive are not included to the scope of supply.
Manufacturing period: 90 days.
