Cold-blast valve

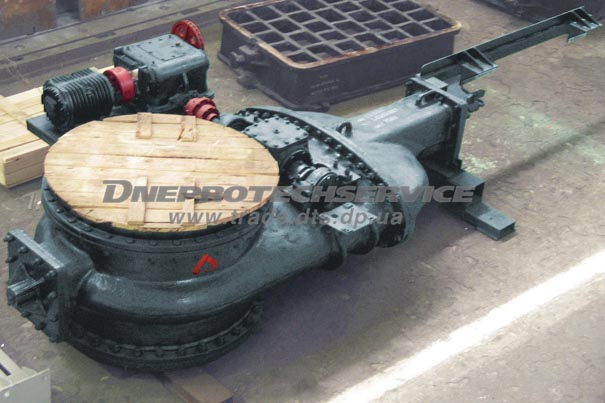

Cold-blast valve is designed to completely shutoff the stove from the cold blast air duct. The valve of gate type has got no cooled elements. The valve is installed on vertical section of air main near the stove.
The cold-blast valve consists of the following main units:
- housing with a cover;
- choke with a relief valve;
- drive.
The cold-blast drive may operate in the automatically driven system.
The valve is supplied with electric drive, brake, controller and position switch.
The controlling equipment is not included to the scope of supply of the cold-blast valve.
Manufacturing period: 120 days.
