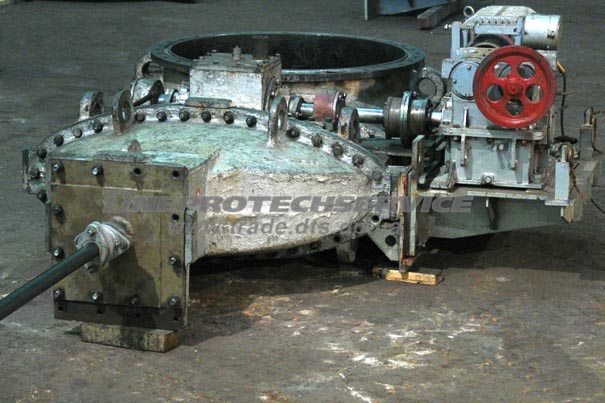

Separating flapper
Separating flapper is designed to quickly shut off the flow cross-section of the mixing cold blast pipe in case the blast supply to the furnace is stopped in order to prevent the possibility of penetration of hot gases from the furnace to the cold blast pipe. The flapper may operate in the automatic control system.
The flapper has got a vertical flap and is installed at the horizontal section of blast pipe.
Left-hand and right-hand flappers depending on the drive location are produced and supplied with electric drive, brake, controller and position switches.
Manufacturing period: 120 days.
