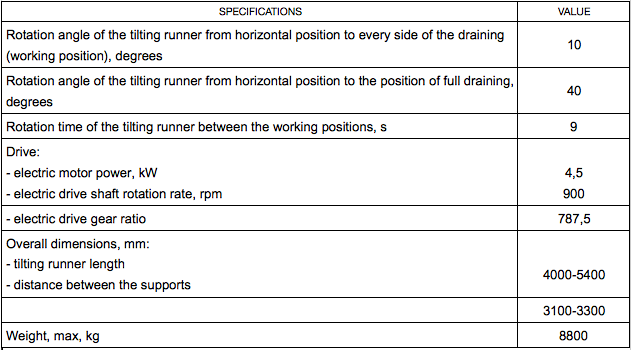

Tilting runner
Tilting runner is designed to variably change the direction of the molten iron stream or slag to the hot-metal or slag ladle cars.
The tilting runner consists of: runner itself, cradle, crank gear and electric drive. The surface of the runner is lined and the runner is fixed on the travelling cradle.
The drive of the runner consists of:welded frame, electric drive, brake, worm reducer, cylinder reducer, controller. There is a hand drive to rotate the runner from the wheel with the electric drive start blocking. Hot iron and slag come to the tilting runner from the nose of the stationary channel.
Manufacturing period: 90 days.
