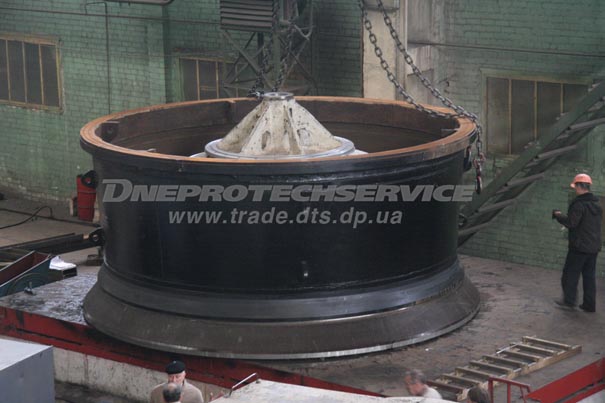

Furnace-charging gear (cup-and-cone)
Cup and cone are designed to perform the function of distribution and locking of batch materials and gas sealing of the blast-furnace mouth.
The cup and cone have the increased wear resistance of contact belts due to availability of carbide and chrome welding. The gas tightness is reached due to the precise geometry received in the result of accurate grinding performed on precision equipment. To stabilize the dimensions the cup and the cone are put through a special heat treatment.
Advantages: geometrical dimensions stability.
Manufacturing period: 120 days.
