Sectoral valve

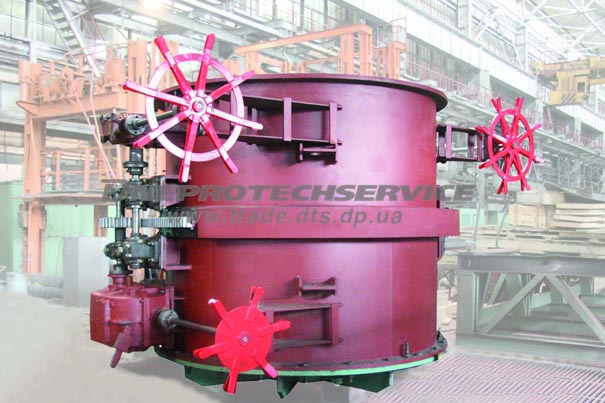

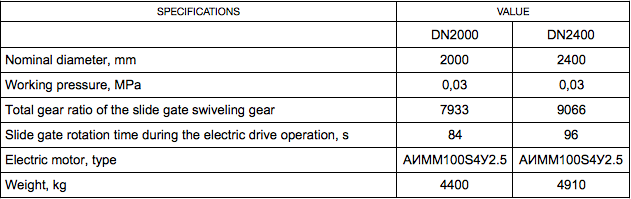

Sectoral valves of DN2400, DN2000 types are designed to shutoff the gas main of semiclear gas and clear furnace gas. The valves are installed on horizontal sections of the mains.
An expansion pipe shall be installed on the gas main directly at the valve.
The sectoral valve consists of the following main units: welded shell consisting of the left and right parts; slide gate installed between the shell parts; fixed axle installed in the supports onto which the slide gate fits freely; slide gate swiveling gears and two (upper and lower) slide gate clamps.
Manufacturing period: 150 days.
