Equalizing valve

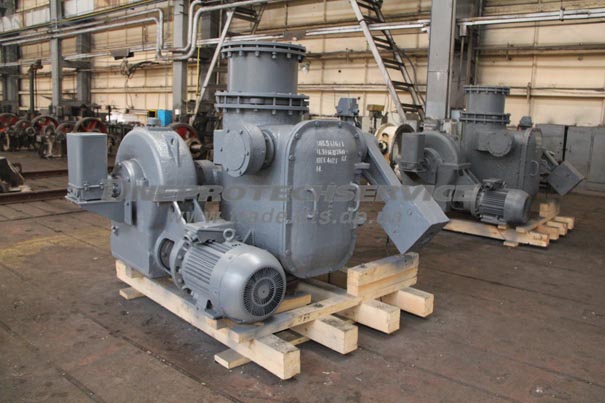

Equalizing valve is designed to operate as a gas shutoff valve of the blast-furnace charging gear. The valve is installed on vertical sections of the filling gas mains intended to supply gas to the interbell space of the blast-furnace charging gear to equalize pressure in it with the gas pressure in the furnace mount as well as of the gas mains intended to discharge gas from the interbell space to the atmosphere to equalize the pressure in the interbell space with atmospheric pressure.
The valve is supplied with electric drive, controller, position and end switches.
The control equipment is not included to the scope of supply.
Manufacturing period: 90 days.
