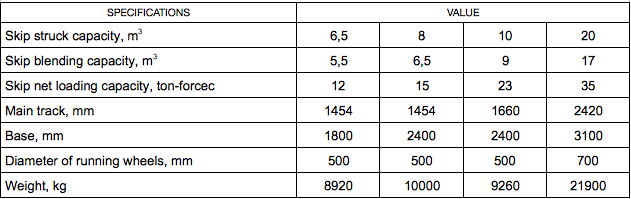

Skip for transportation of burden materials
Skip is designed for transportation of burden materials from the skip pit to the blast-furnace throat to the reception hopper of the charging device. The skip consists of the body, front and rear wheelpair and traction equipment. In order to increase the capacity and facilitate the loading and unloading of material the front edge of the body is made broadened. The bottom and walls are protected from wearing with the furnace charge with the alloy steel plates. In the upper part of the body there is a hole for charging the waste and spills formed in the skip pit. The skips are produced with the hinging of the front and rear wheelpairs.
Advantages: increased capacity.
Manufacturing period: 100 days.
